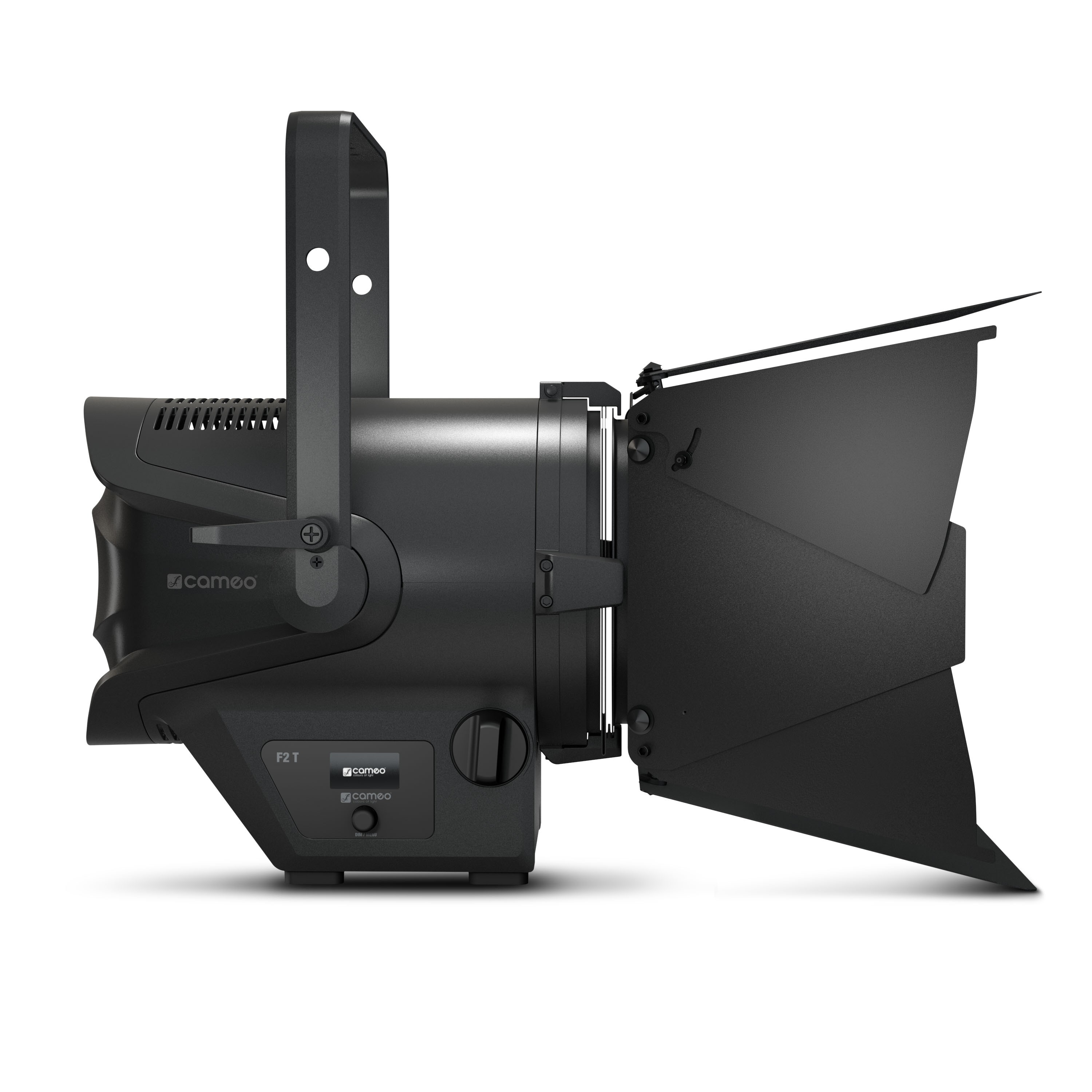

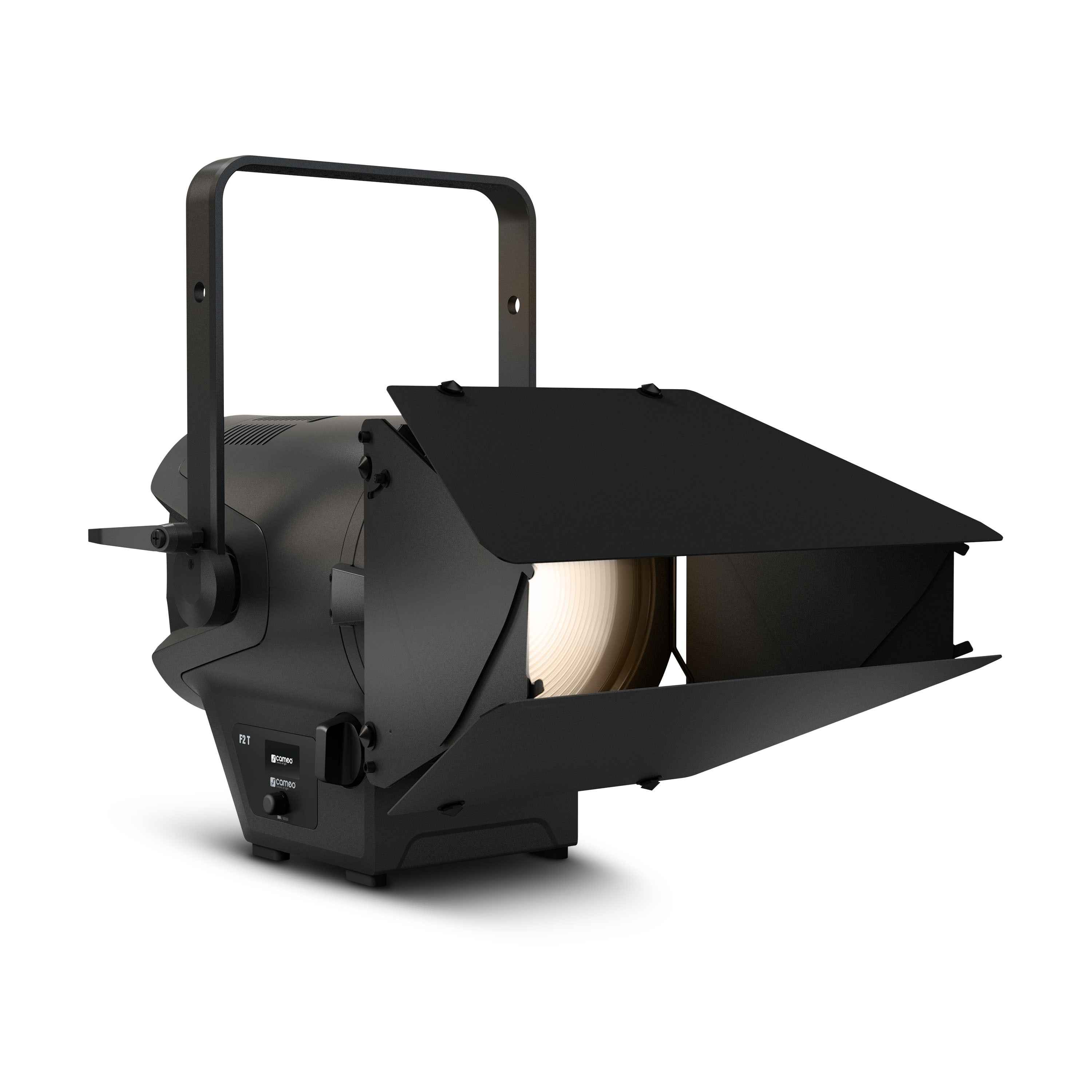

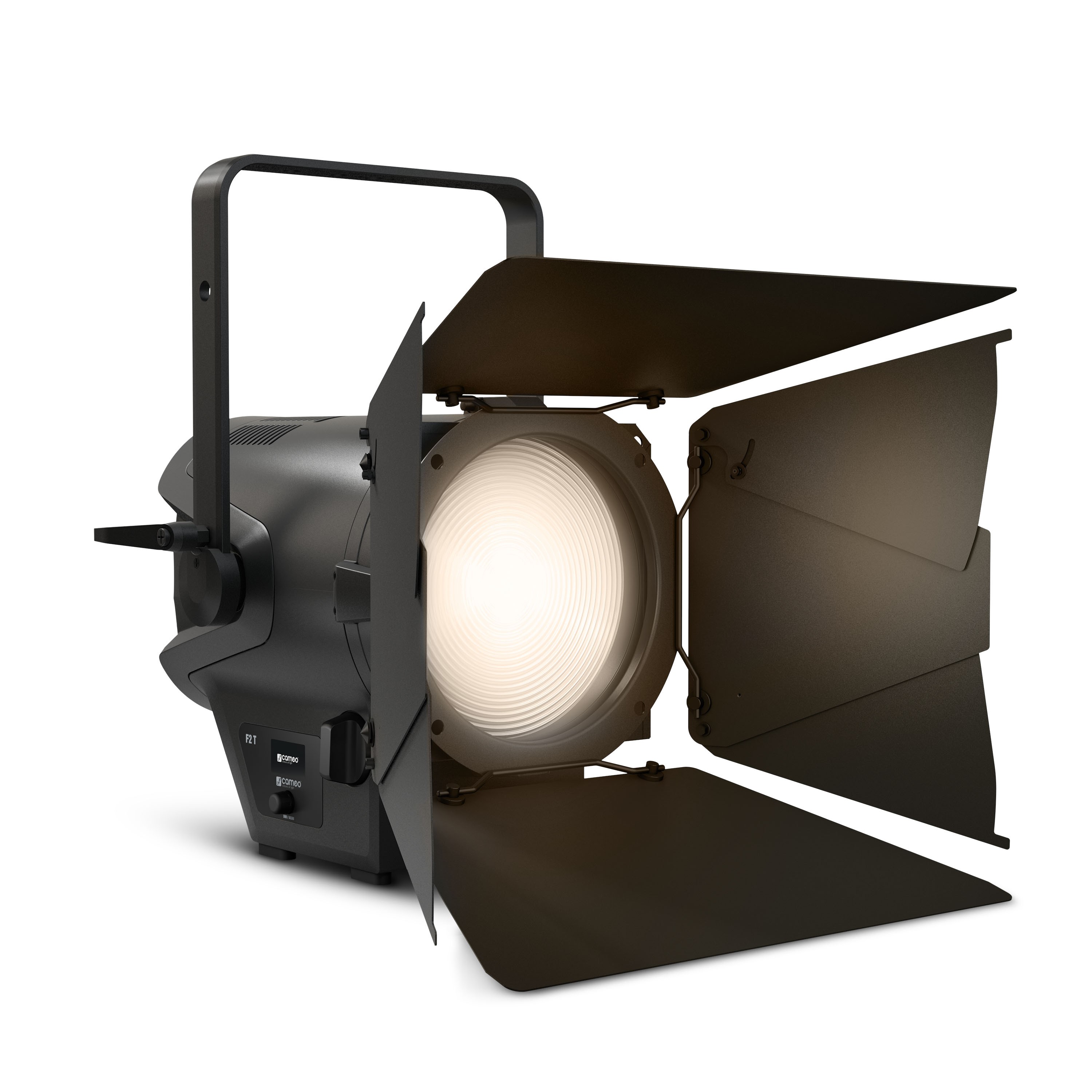

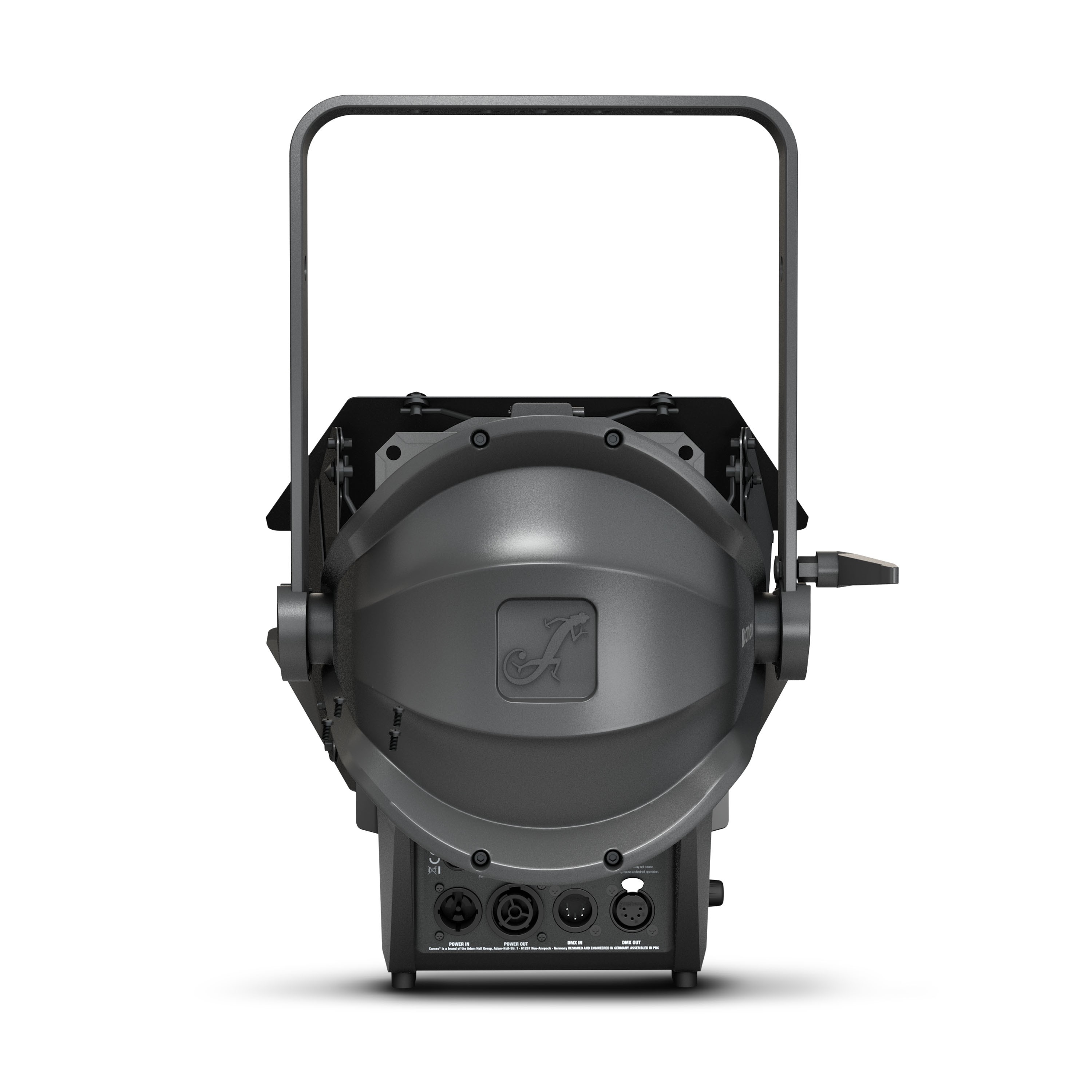

F2 T (Tungsten / Warm white)
제조사 CAMEO (GERMANY)
제품군 LED FRESNEL SPOT

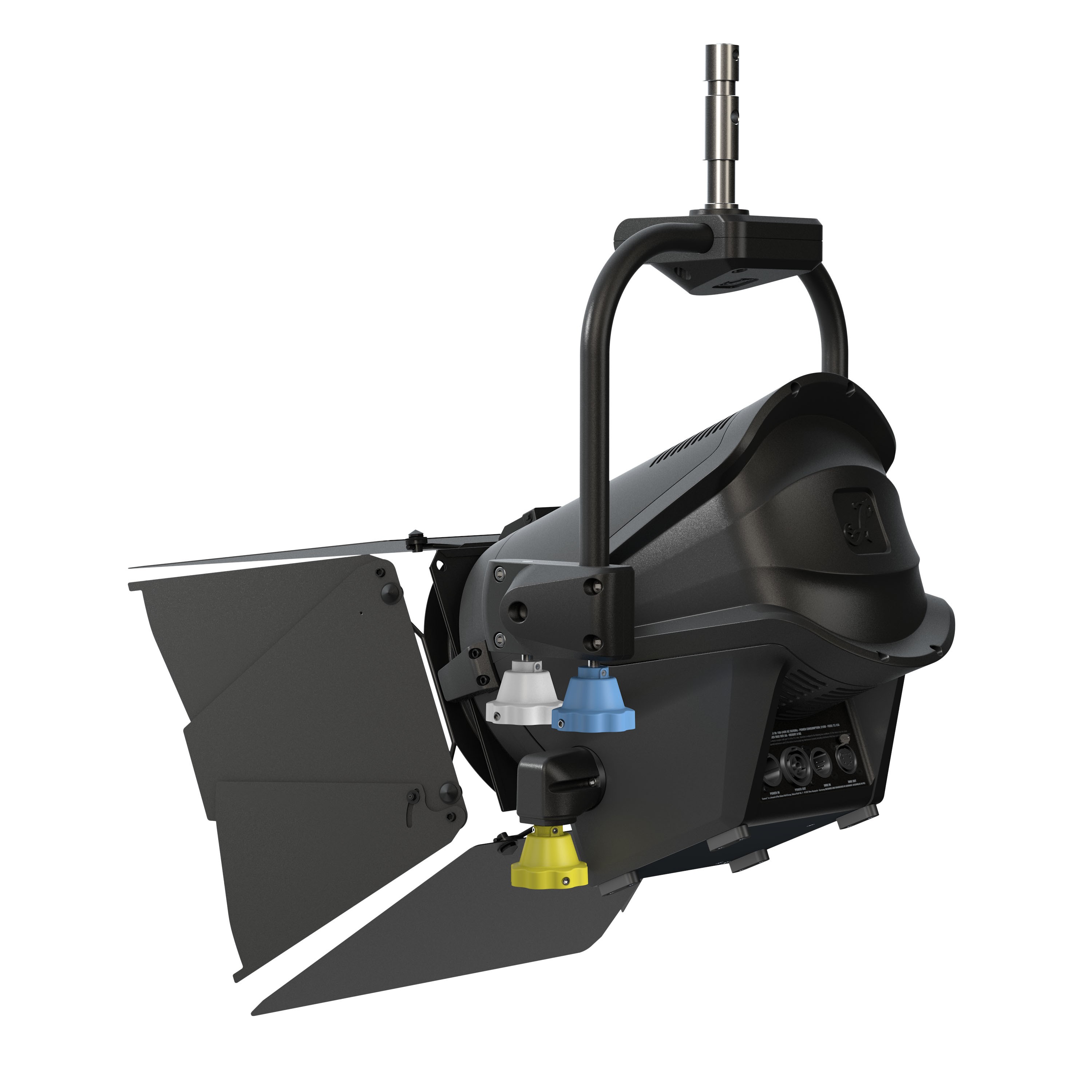

모델명 F2 T ( P.O Type optional / 폴타입 가능)
간략설명 warm white (3200K)
LED type 240 W (ca. 50,000 Operating Hours)

Refresh rate Adjustable: 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12000 Hz, 25000 Hz

Dispersion Beam Angle: 16 ° - 40 ° , Field Angle: 28 ° - 60 °

Lens 200 mm Fresnel

DMX mode 1-channel , 2-channel 1 , 2-channel 2 , 3-channel , 4-channel , 5-channel
DMX Functions Device Settings , Dimmer , Dimmer Curve , Dimmer Fine , strobe
Standalone modes Master / Slave mode , Static

Indicators OLED Display

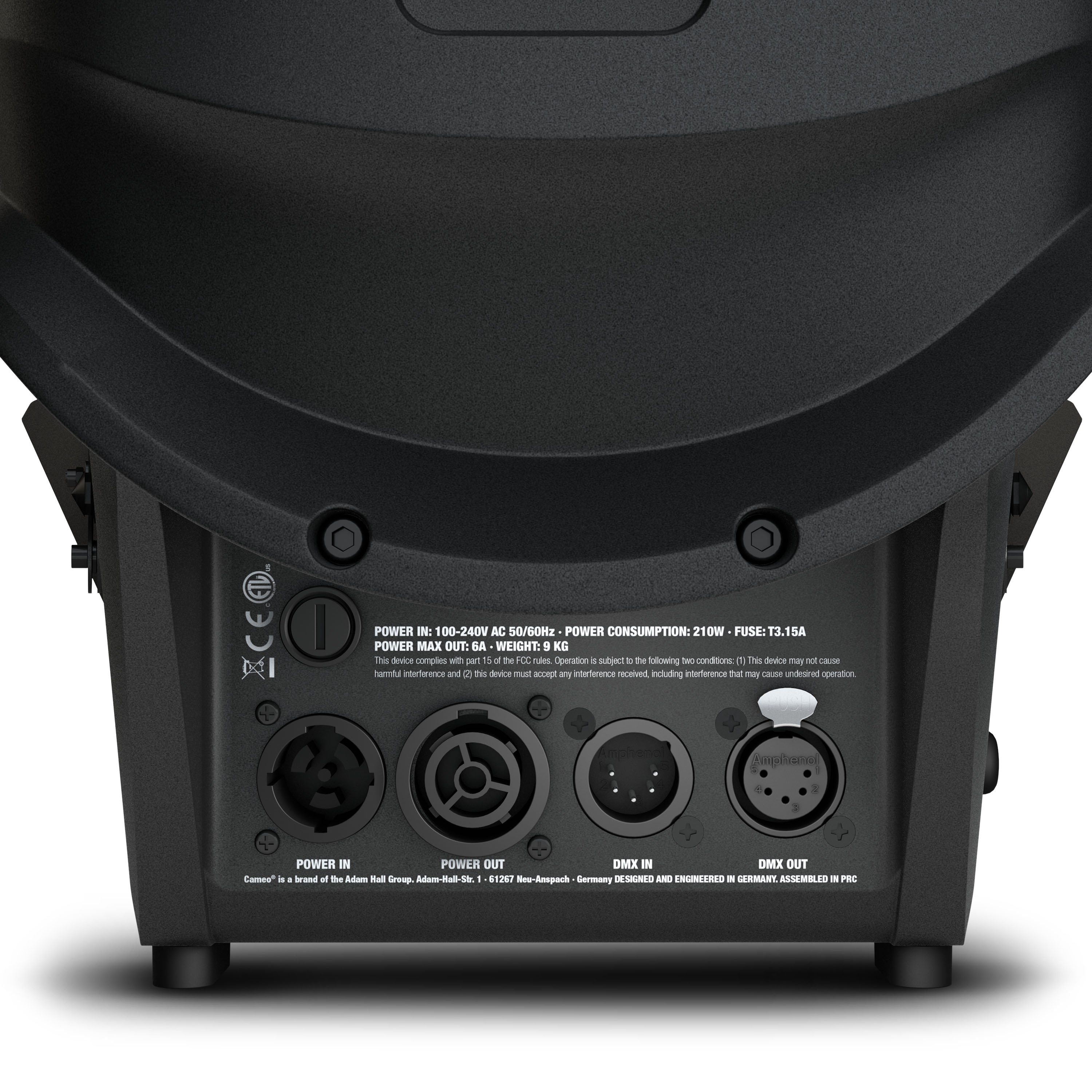

Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption 210 W

Housing material Die-cast aluminum
Cabinet colour Black

Protection class IP 20

Cooling Comination of Heat Pipe and Temperature Controlled Fan

Luminous flux 12.500 lm
Efficiency 57 lm/W
Ambient temperature (operating) -15 - 45 °C
Colour temperature 3200 K


Dimensions (W x H x D, without Mounting Bracket and Sash Limiter)

Width 270 mm
Height 292 mm
Depth 322 mm
Weight 9 kg
관련링크 https://www.cameolight.com/en/solutions/install/static-lighting/theate…
