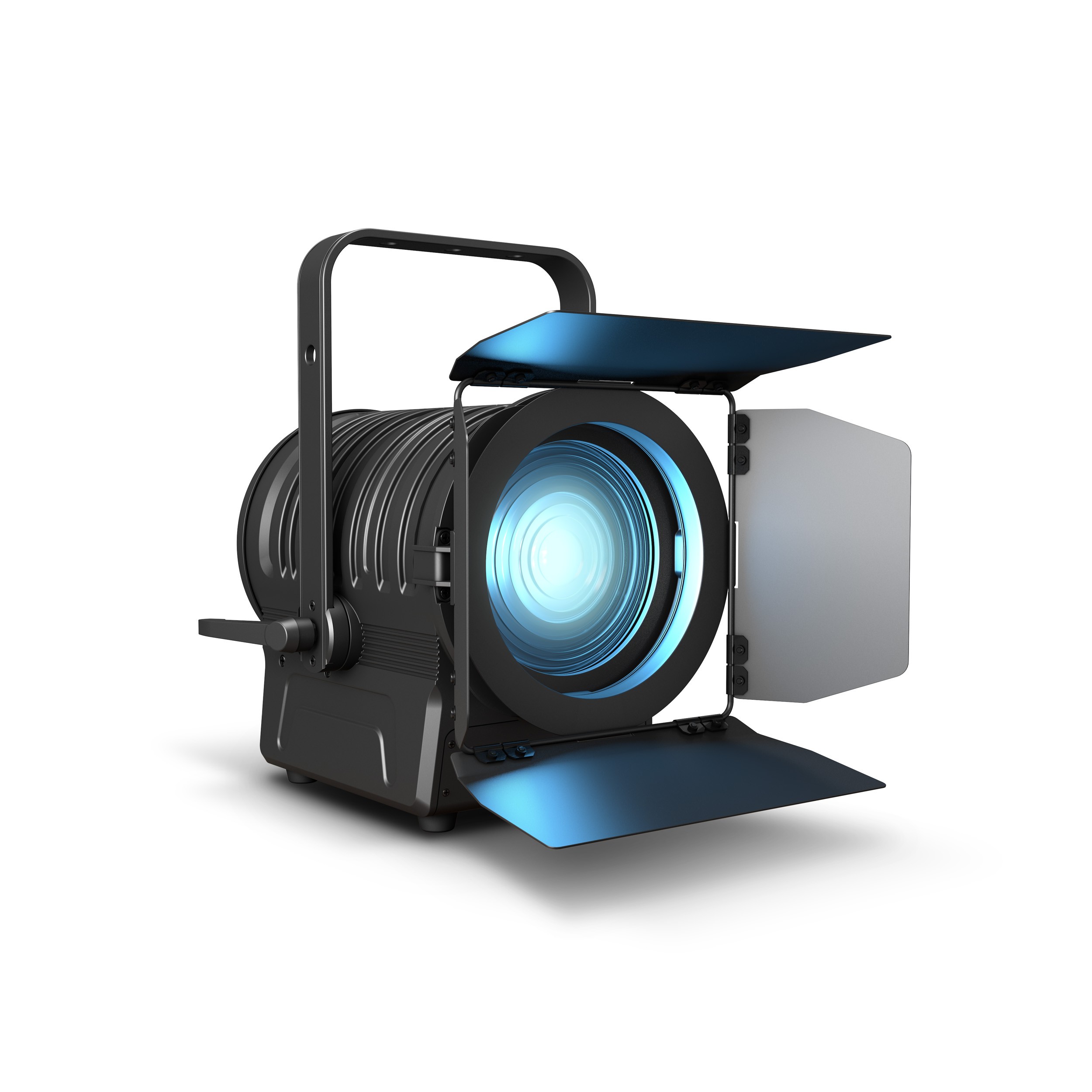

TS 200 FC (RGBALC)
제조사 CAMEO (GERMANY)
제품군 LED FRESNEL
모델명 TS 200 FC ( RGBALC)
간략설명 Product type LED Fresnel Spotlight
Type Fresnel Theater Spot with zoom function
Colour spectrum RGBALC
Number of LEDs 1
Color temperature 2800 - 8000 K
CRI > 90
LED type 200 W
Refresh rate 12000 Hz, 1530 Hz, 25000 Hz, 3600 Hz, 650 Hz
Dispersion 14 - 50 °
DMX input XLR 3-pin male, XLR 5-pin male
DMX output XLR 3-pin female, XLR 5-pin female
DMX colour modes CCT, Direct, HSI
Modes of operation DMX512, Master / Slave mode, Standalone
DMX Functions Amber, Blue, CCT, Colour macros, Cyan, Device Settings, Dim to Warm, Dimmer, Dimmer Fine, Green, Hue Saturation, Lime, Red,
Silent Mode, strobe, Tint
RDM Yes
Strobe flash rate 1–20 Hz
Standalone modes CCT, Colour macros, Direct, HSI, Master / Slave mode
Controls Down, Enter, Mode, Up
Indicators LC display
Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption 200 W
Power connector Blue and White Power Twist
Fuse T3A / 250 V (5 x 20 mm)
Housing material die cast metal
Cabinet colour Black
Cooling temperature-controlled fan
Relative Humidity < 80 %, not condensing
Operating Temperature 0 - 40 °C
Luminous flux 5500 (@3200 K) lm
Width 320 mm
Height 370 mm
Depth 310 mm
Weight 8 kg
Accessories (included) barndoor, Colour Filter Frame
관련링크 https://www.cameolight.com/en/solutions/dj-musicians/static-lighting/t…
