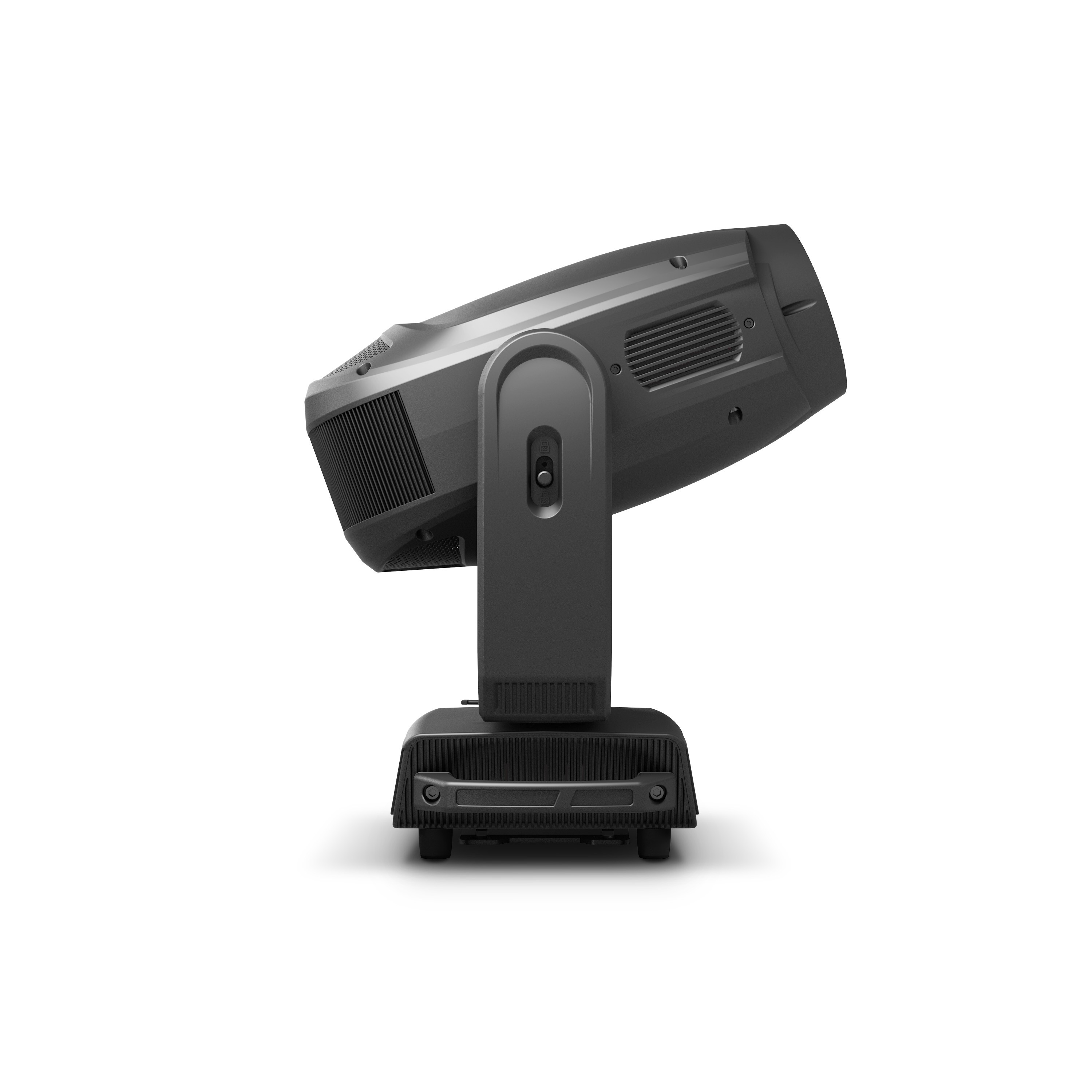

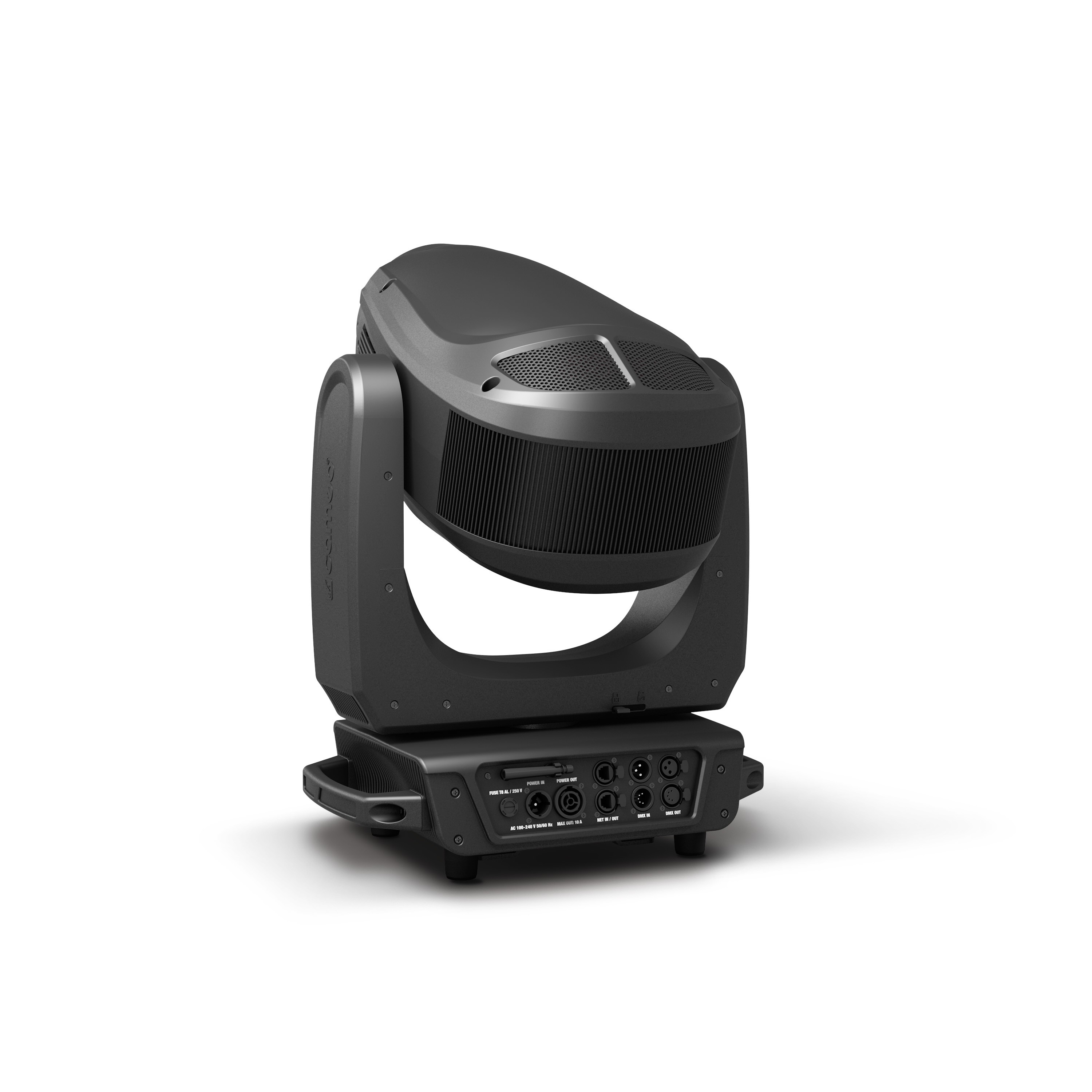

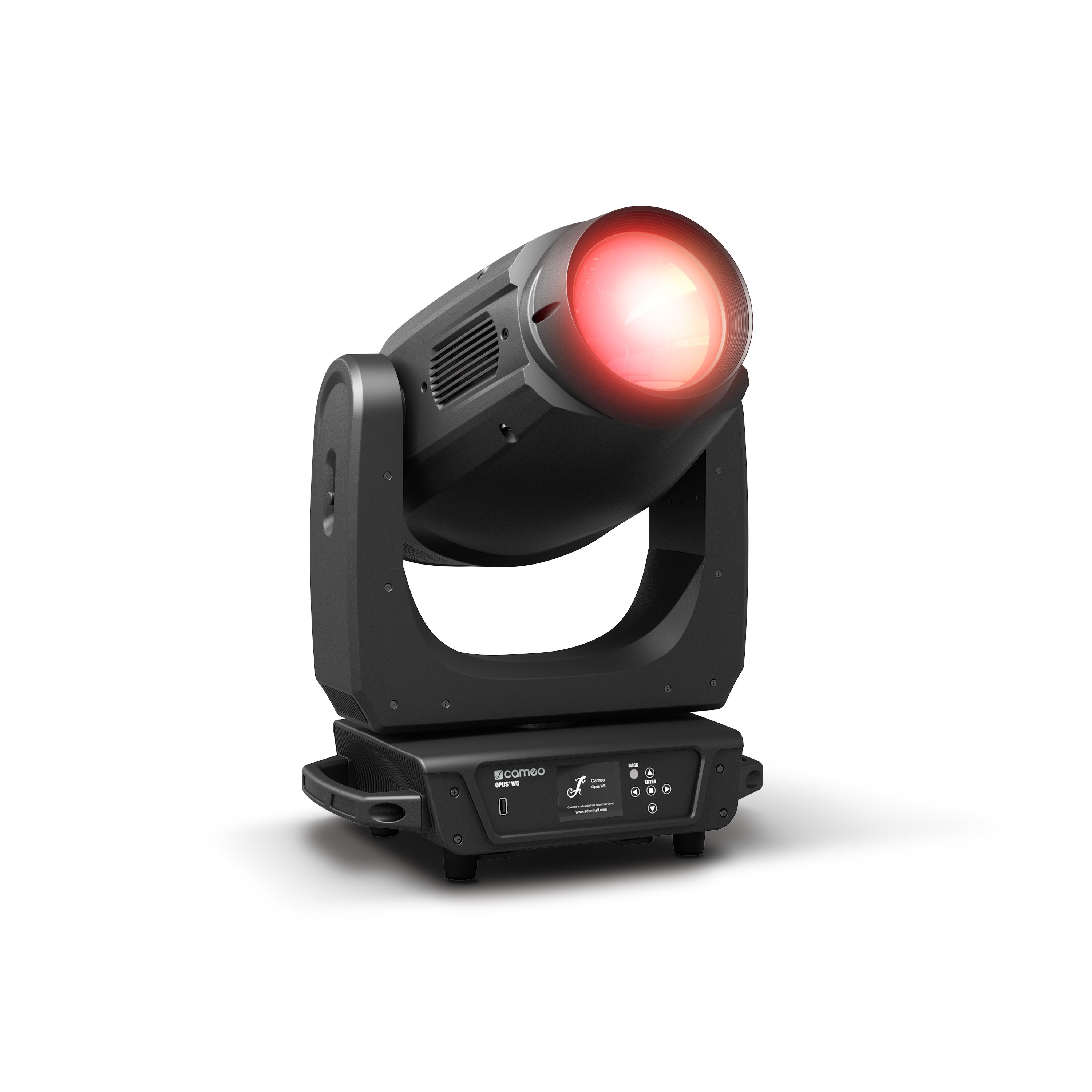

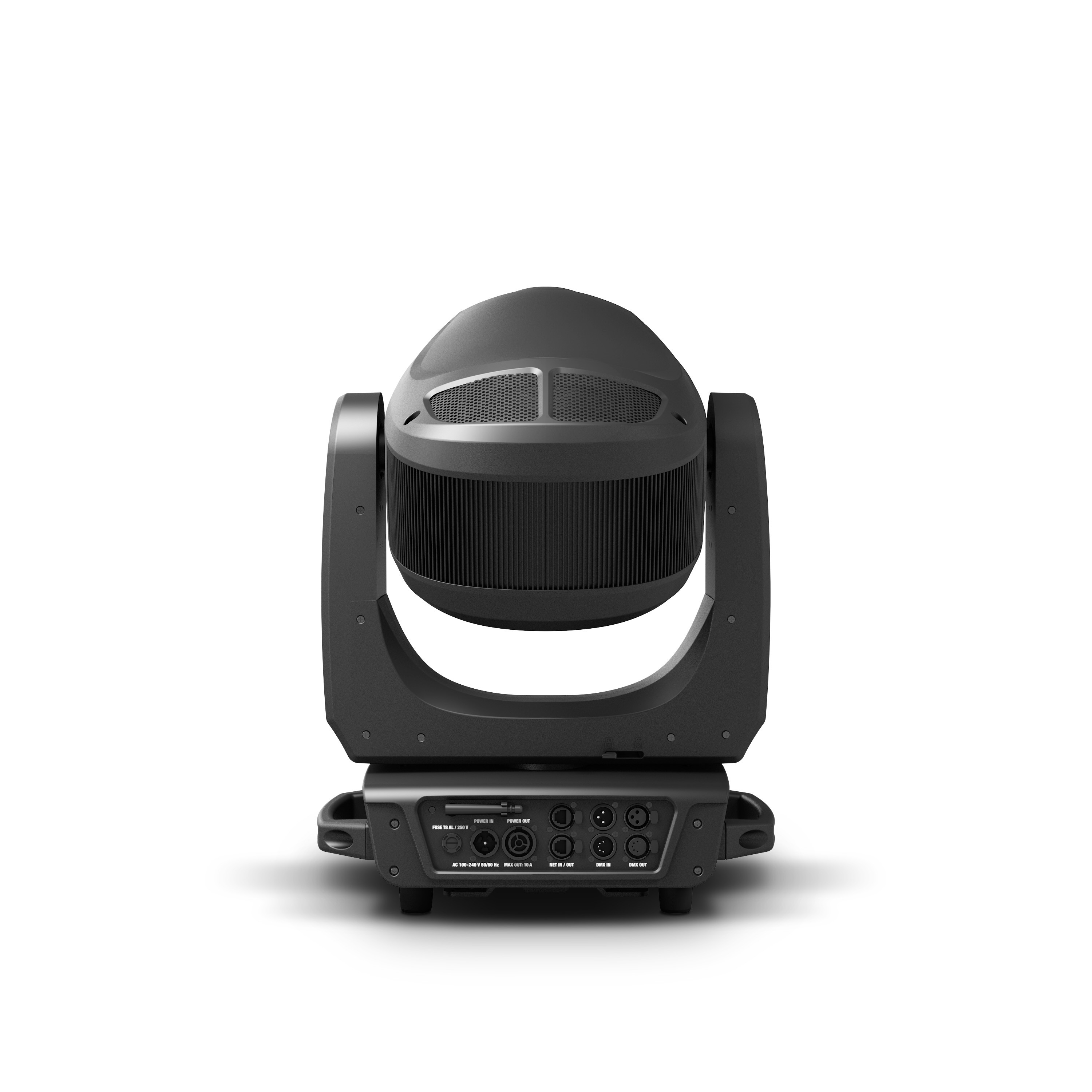

모델명 OPUS W5
간략설명 LED type 380 W
Dispersion 6 - 48 °
Effects 4-Blade - 2 axis - Framing, Focus, Framing rotation 90°, Heavy Frost, Iris, Zoom
Colour mixing function CMY + CTO
LED PWM Frequency 650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 18900 Hz, 25000 Hz
Color wheel with color correction filters, with saturated color filters
DMX input XLR 3-pin male, XLR 5-pin male
DMX output XLR 3-pin female, XLR 5-pin female
DMX mode 29-channel, 48-channel
DMX Functions Blades fine, CMY, CMY Fine, Color Wheel 1, Color Wheel 1 Fine, Color Wheel 2, Color Wheel 2 Fine, Control Channel, CTO, CTO Fine, Dimmer, Dimmer Fine, Focus, Focus Fine, Frost, Iris, Pan/Tilt, Pan/Tilt fine, Pan/Tilt Macros, Pan/Tilt Speed, Shape fine, Shape Rotation, strobe, Zoom, Zoom Fine
PAN movement 540°
TILT movement 270°
Standalone modes Master / Slave mode, Static Mode
Control ArtNet, DMX, Master/Slave Signal, RDM, sACN, Wireless DMX
Controls Down, Enter, Left, Mode, Right, Up
Indicators Color touch display
Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption 530 W
Power connector Neutrik powerCON TRUE1 TOP
Housing material ABS plastic, Metal
Cabinet colour Black
Cooling Silent, temperature controlled fan
Luminous flux 15400 lm
Maximum Ambient Temperature -15 - 45 °C
Width 400 mm
Height 250 mm
Depth 630 mm
Weight 24 kg
Accessories (included) 2 x omega mounting, Power Cord with Neutrik powerCON TRUE1 Connector, User's manual
관련링크 https://www.cameolight.com/en/solutions/rental/moving-lights/wash-movi…

OPUS W5상세정보
