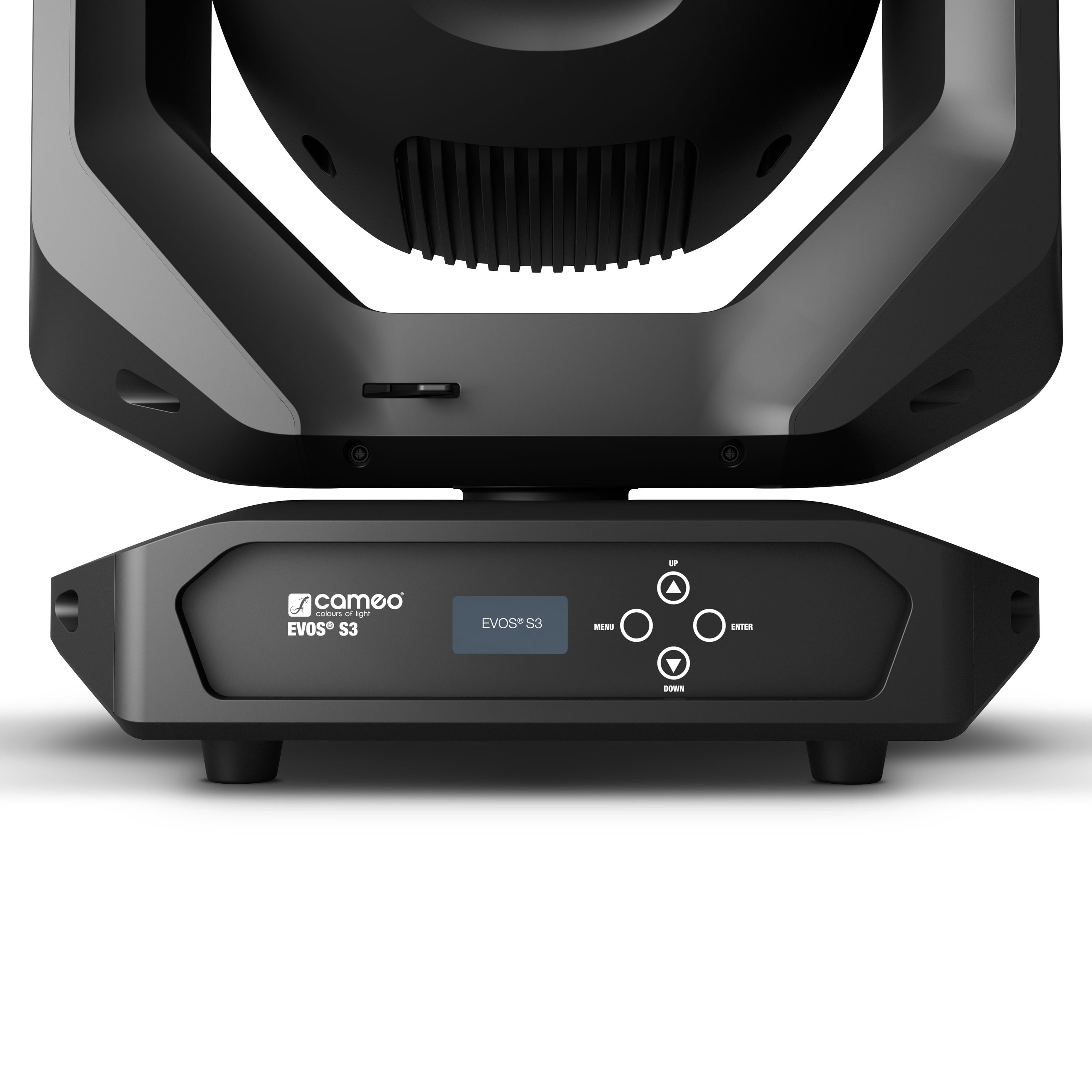

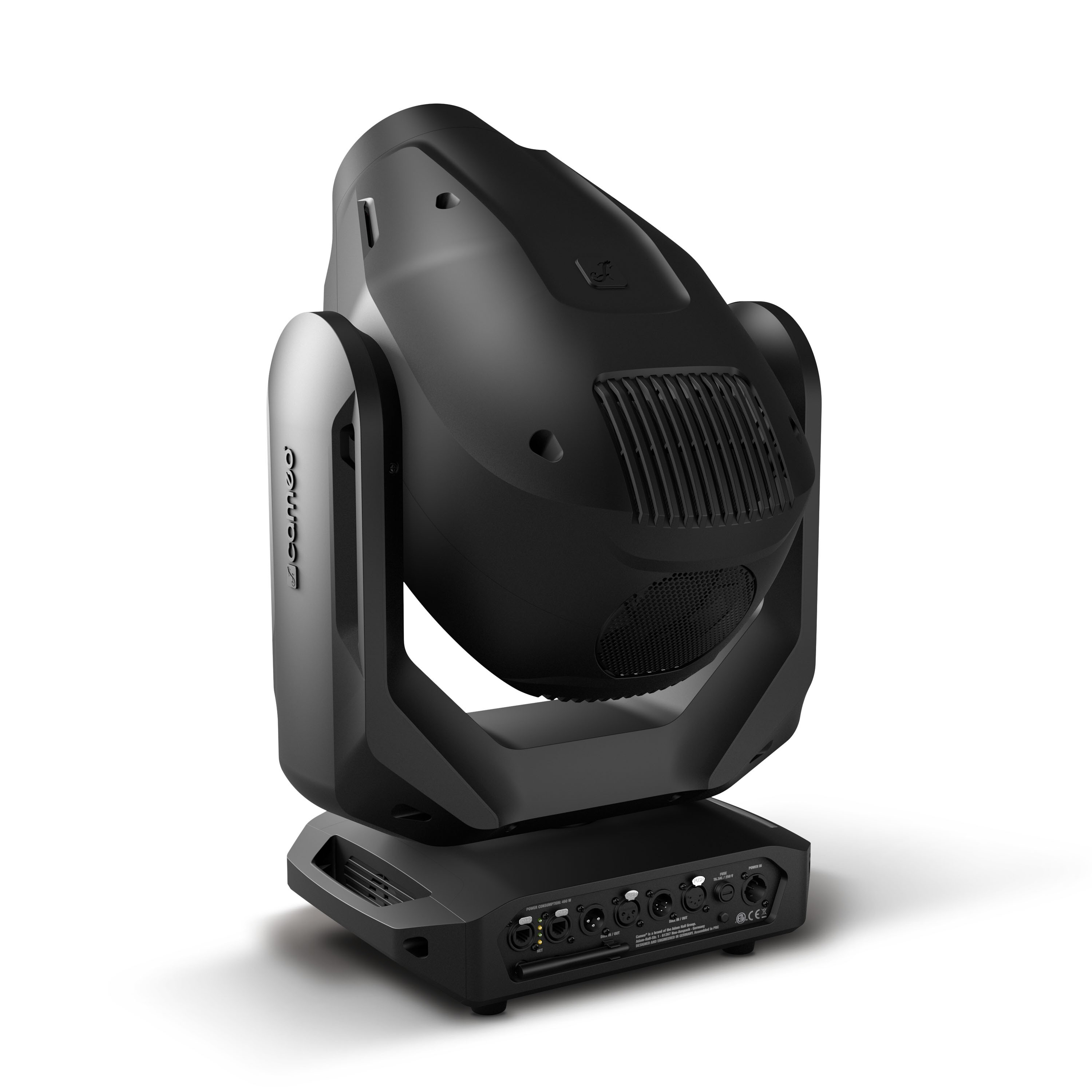

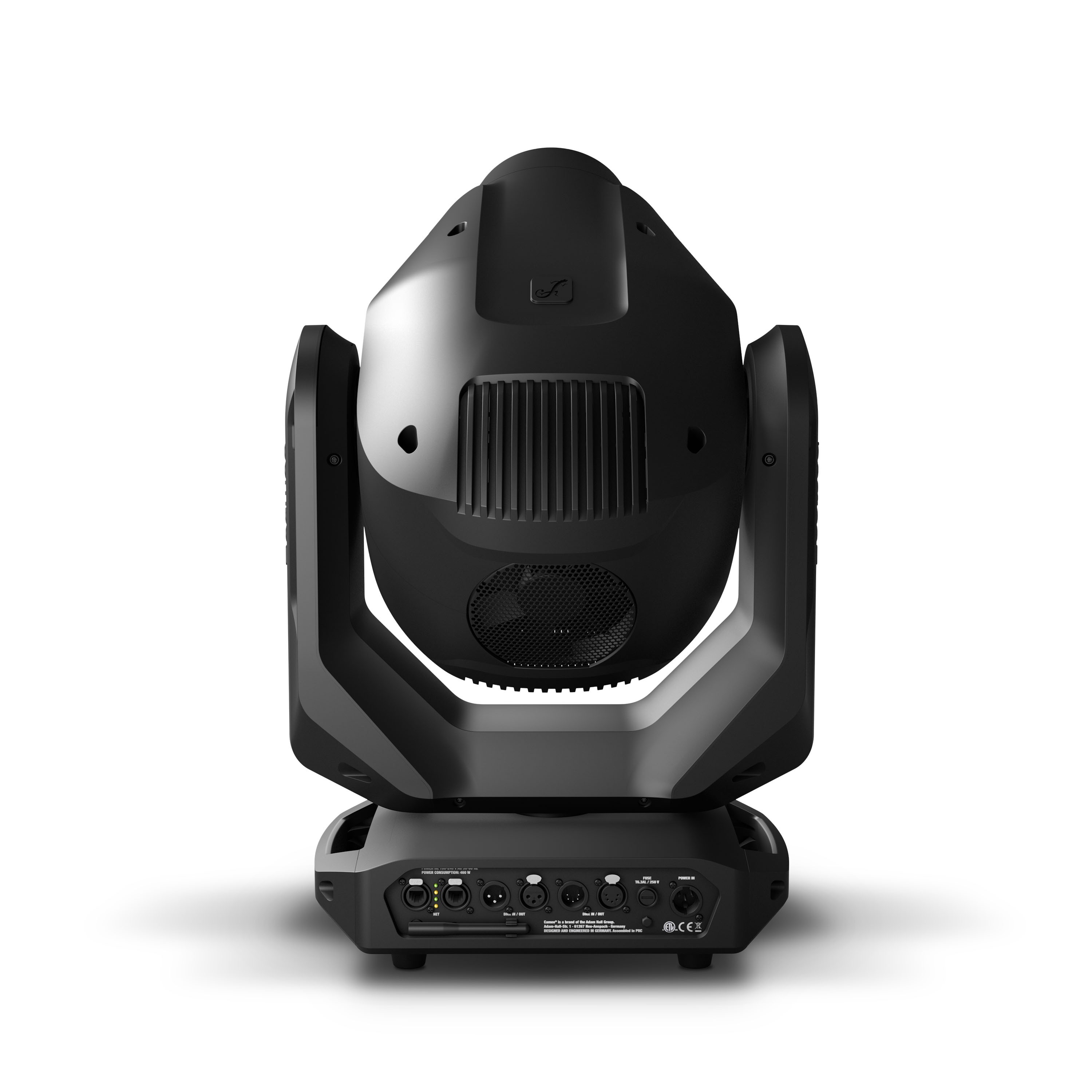

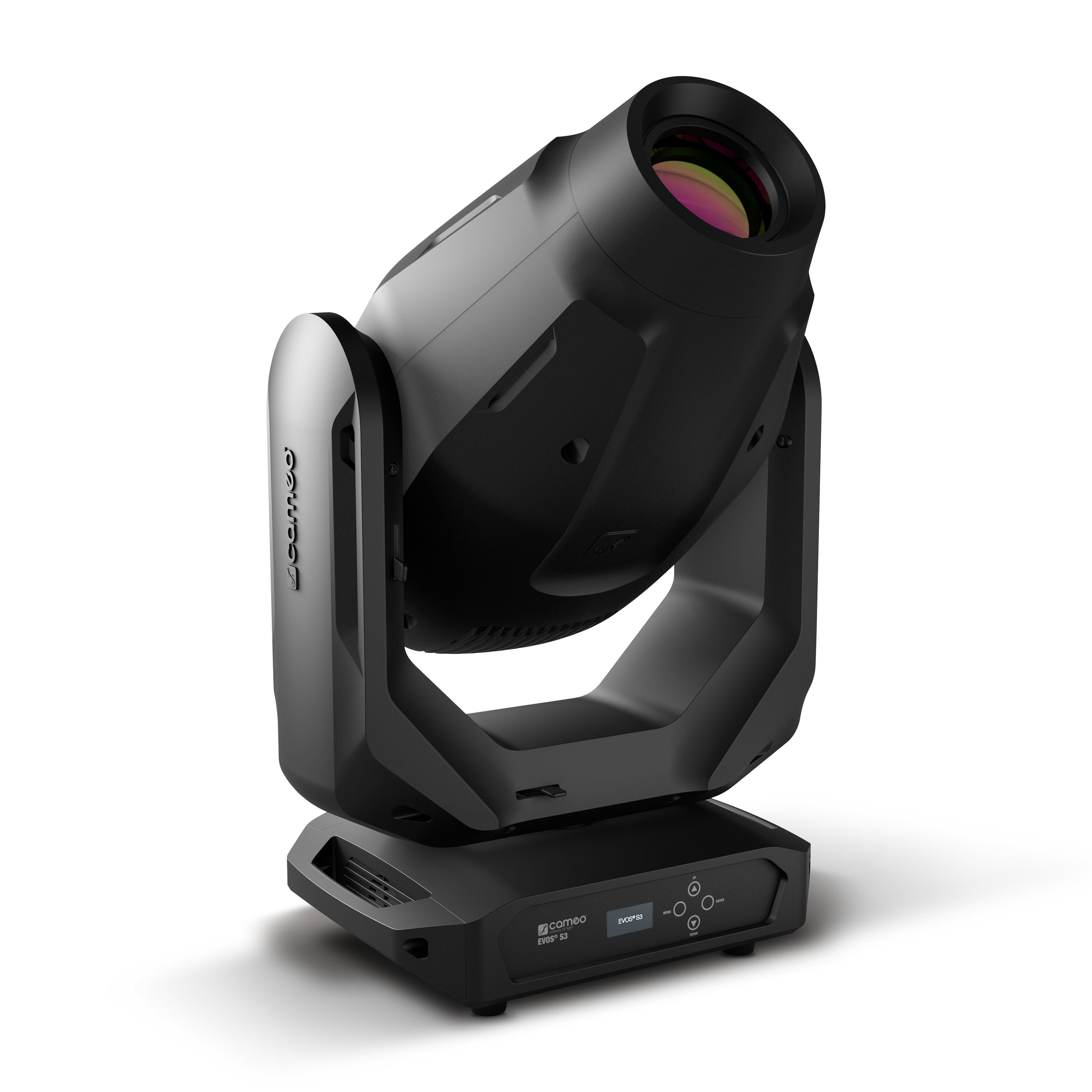

모델명 EVOS S3
간략설명 LED type 350 W

Color temperature 6800 K
Refresh rate adjustable to 25000 Hz
Dispersion 10 - 38 °

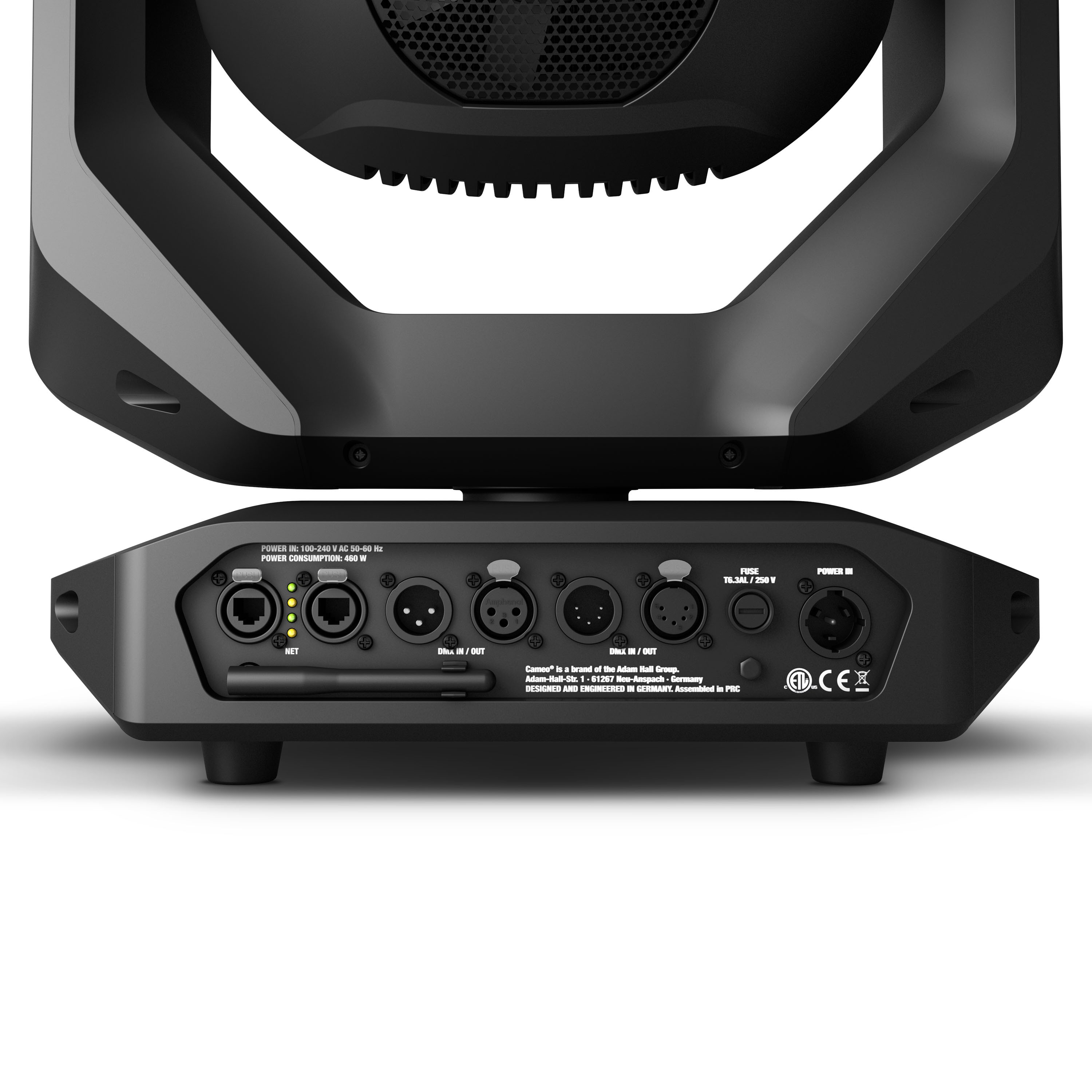

DMX input RJ45 Ethernet In (ArtNET), XLR 3-pin male, XLR 5-pin male
DMX output RJ45 Ethernet Out (ArtNET), XLR 3-pin female, XLR 5-pin female
DMX mode 22-channel, 32-channel
DMX Functions Auto programs, Colour wheel, CTO, CTO Fine, Cyan, Cyan Fine, Device Settings, Dimmer, Dimmer Fine, Focus, Focus Fine, Frost, Gobo wheel, Gobo Wheel 1, Gobo Wheel 2, Gobo Wheel Fine Index, Gobo Wheel Rotation & Index, Iris, Magenta, Magenta Fine, PAN, PAN FINE, Pan/Tilt Macros, Prism, Set Dimmer Curve, strobe, TILT, TILT FINE, Yellow, Yellow Fine, Zoom, Zoom Fine
PAN movement 540°
TILT movement 270°
High Speed Strobe > 20 Hz
Standalone modes Auto Mode, Device Settings, Static
Controls Enter, Mode, Value Down, Value Up
Indicators OLED Display
Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption 460 W
Efficiency 26 lm/W
Housing material ABS plastic, Metal
Cabinet colour Black
Protection class IP IP20
Cooling Advanced heatpipe-liquid cooling system with temperature controlled fans
Illuminance 14,760 lx @ 5 m (12°), 41,000 lx @3 m, (narrow)
Luminous flux 12,000 lm
Maximum Ambient Temperature -15 - 45 °C
Width 403 mm
Height 663 mm
Depth 257 mm
Weight 23,5 kg
Features 2 x Omega Clamp, Power cord
관련링크 https://www.cameolight.com/en/solutions/rental/moving-lights/spot-movi…

EVOS S3상세정보
