간략설명 Main features
Rittal made enclosure
Up to 120 channel per cabinet (10 bays in total)
Mains input via cooper rails (bus bar, 3×400A or 3×630A)
Each bay is protected with HRC fuses
Free-stand construction with only 60cm × 60cm footprint
Service door on the backsite for wiring
Separate bays for 12-channel, 6-channel and 3-channel dimmers
All our made 3U-heigh dimmers and relay packs are useable into the cabinet (with MS2 variation)
Slots are moving on roller balls for easy install
Output protections can be MCBs (1P, 1P N or 2P) or RCBOs
Blank cover set for empty bays
Easy upgrade for non-using bays
Output connections via DIN mounted screw terminals

Orderable slots
FLX-12xx-MS2 (12-channel FLX dimmer/relay combo)
FLX-625-MS2 (6×5,7kW FLX dimmer/relay combo)
PRO2-12xx-MS2 (12-channel PRO2 dimmer)
PRO2-625-MS2 (6×5,7kW PRO2 dimmer)
xLite-12xx-MS2 (12-channel xLite dimmer)
xLite-363-MS2 (3×15kW xLite dimmer)
RP-12xx-MS2 (12-channel relay)

Where ’xx’ means the output current per channel

Orderable output protection per each channel
MSO-1PN 1P N MCBs for all outputs
MSO-RCBO Single module size 1P N 30mA RCBO
MSO-2P 2P MCBs for all outputs (for IT DELTA mains)

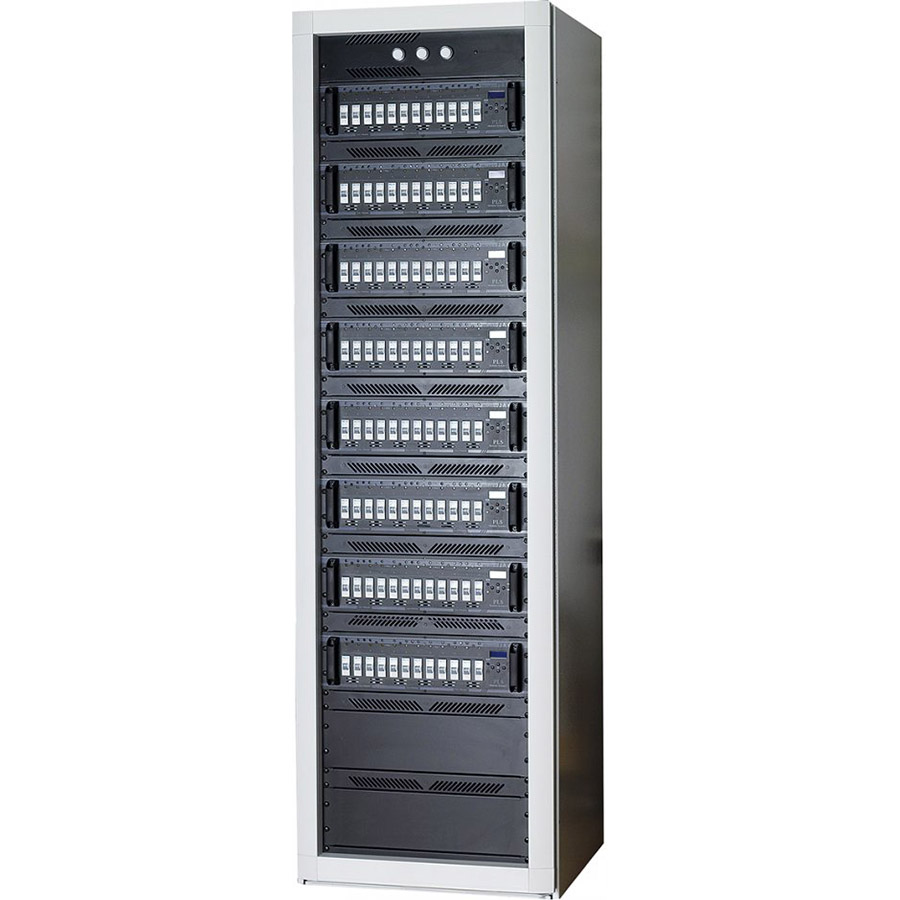

.MS2 Dimmer Cabinet System

Mains 3P+N+PE (230 V/400 V Star 50 or 60 Hzmax. 3×400 A or 3×630 A
Output channels numbersand output current Up to 120 channel (10A, 13A, 16A, 25A or 63A,depends on the dimmer type)
Protection of slots HRC fuses for each bays (D02 40A or 63A perphase, depends on slot type)
Corrosion protection Electrostatic sintering (RAL9005 and RAL7035)
Operating temperature 0 °C to 35 °C (RH: 0-90%, non-condensing)
Dimensions 600×2000×600 (W×H×D in mm) Package dimensions: 620×2120×800 (W×H×Din mm)
Weight 100-150 kg (net, depends on bay types and mains input, without slots)
