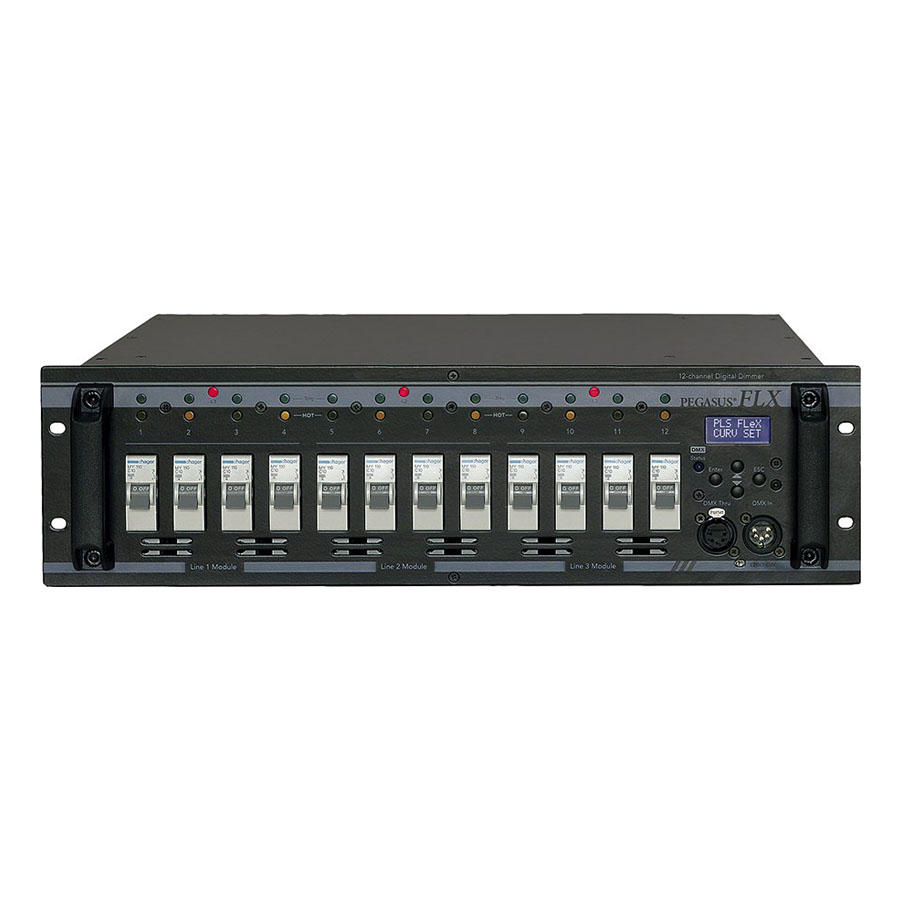

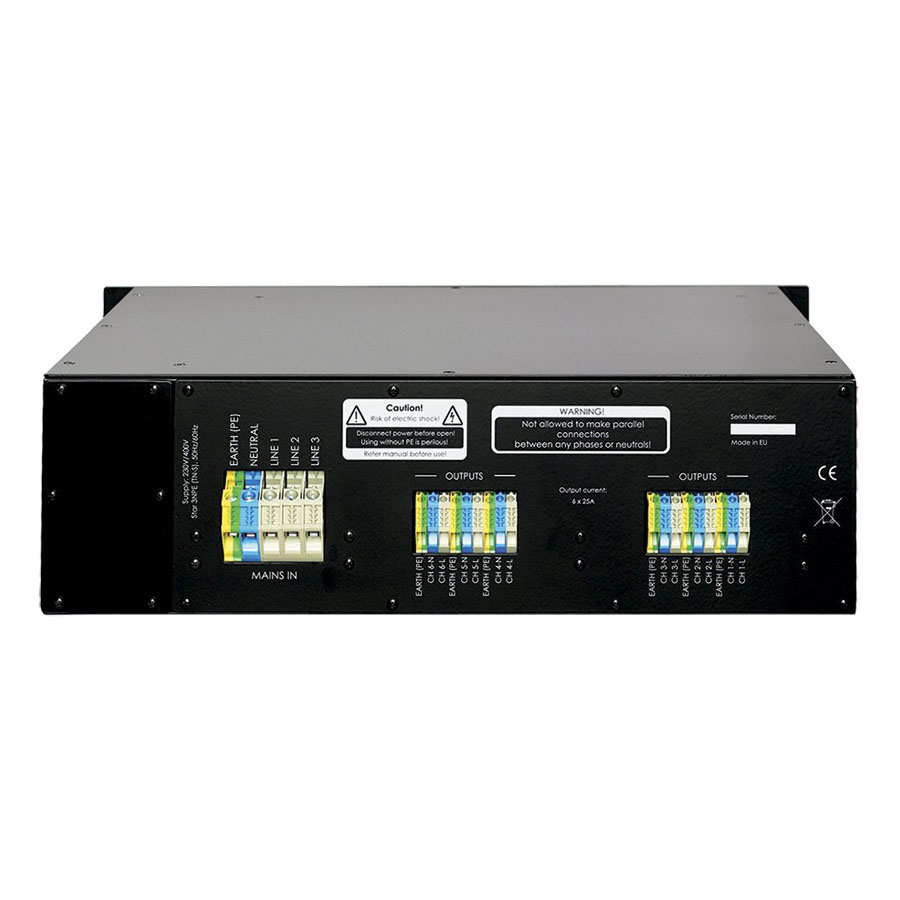

| Pegasus FLX Dimmer | |
|---|---|
| 제조사 | PLS |
| 제품군 | DIMMER |
| 모델명 | Pegasus FLX Dimmer |
| 간략설명 | Main features Four different power output models: 12×10A (12×2,3kW), 12×13A (12×3kW) 12×16A (12×3,7kW) and 6×25A (6×5,7kW) True225/250μs rise time filtering for dimmer output Easy menu control with four push buttons and blue 2×8 character LCD Control signals indicated by green LEDs Global DMX address set or SoftPatch Individually selectable parameters per channel: PreHeat Maximum Level Control curves (Voltage Linear, 120V, Square, Fluorescent, TV, BBC, RELAY, POWER and User-Editable) DMX Address (SoftPatch) Test function to check channels one by one Four different power output models: 12×10A (12×2,3kW), 12×13A (12×3kW) 12×16A (12×3,7kW) and 6×25A (6×5,7kW) User editable 16 scene memory for standalone mode with DMX Record option Internal fan with two speeds plus off depending on internal heat (for low noise operation) Overheat protection (dim down to 50%) Overload protection by circuit breakers (1P, 1P+N or 2P) or 30mA 1P+N RCBOs SoftFlash handling to eliminate MCB strikedown DMX-512 (DMX-512A ready) and optional analogue (0-10V) control Optional 10V output for small analog control desks Factory reset to restore all parameters Option for backside XLR connectors |
| 관련링크 | https://www.pls.hu/products/digital-dimmers/pegasus-flx-dimmers/ |
Pegasus FLX Dimmer상세정보
.
FLX Dimmer Technical Specifications
Mains
(12×2.3kW model) 3P+N+PE (230V/400V Star 50 or 60 Hz) 3×40A via 1.5 m length 5×6 mm² H07 rubber cable without CEE plug
Output current / Filtering
(12×2,3kW model) 12x10A / 225 μs between 10 %-90 % at full load and 90 ° phase-angle
Mains
(All other models) 3P+N+PE (230V/400V Star 50 or 60 Hz) 3×63A via 1.5 m length 5×10 mm² H07 rubber cable without CEE plug
Filtering
(All other models) 250 μs between 10 %-90 % at full load and 90 ° phase-angle
Control connectors 5-pole XLR Input-Throughput for DMX-512 (optically and power isolated)
15-pole SUB-D male for analogue inputs (optional)
Protections -Inputs are EFT/ESD/Surge protected according to EN 61000-6-2
-1P, 1P+N or 2P Icn 4.5 kA circuit breakers or 30mA 1P+N RCBOs on the outputs (Icn 6kA on request)
-Internal thermal protection against overheat
Corrosion protection Electrostatic sintering (RAL9005, AkzoNobel)
Operating temperature 0 °C to 35 °C (RH: 0-90%, non-condensing)
Dimensions 19” rack 3U 484×132×350 (W×H×D in mm + connectors)
Package dimensions: 620×620×230 (W×H×D in mm)
Weight 18 kg (net), 20 kg (gross) / 12x10A model
20 kg (net), 22 kg (gross) / all other models
FLX Dimmer Technical Specifications
Mains
(12×2.3kW model) 3P+N+PE (230V/400V Star 50 or 60 Hz) 3×40A via 1.5 m length 5×6 mm² H07 rubber cable without CEE plug
Output current / Filtering
(12×2,3kW model) 12x10A / 225 μs between 10 %-90 % at full load and 90 ° phase-angle
Mains
(All other models) 3P+N+PE (230V/400V Star 50 or 60 Hz) 3×63A via 1.5 m length 5×10 mm² H07 rubber cable without CEE plug
Filtering
(All other models) 250 μs between 10 %-90 % at full load and 90 ° phase-angle
Control connectors 5-pole XLR Input-Throughput for DMX-512 (optically and power isolated)
15-pole SUB-D male for analogue inputs (optional)
Protections -Inputs are EFT/ESD/Surge protected according to EN 61000-6-2
-1P, 1P+N or 2P Icn 4.5 kA circuit breakers or 30mA 1P+N RCBOs on the outputs (Icn 6kA on request)
-Internal thermal protection against overheat
Corrosion protection Electrostatic sintering (RAL9005, AkzoNobel)
Operating temperature 0 °C to 35 °C (RH: 0-90%, non-condensing)
Dimensions 19” rack 3U 484×132×350 (W×H×D in mm + connectors)
Package dimensions: 620×620×230 (W×H×D in mm)
Weight 18 kg (net), 20 kg (gross) / 12x10A model
20 kg (net), 22 kg (gross) / all other models
